Dyness STACK100 Energy Storage Battery
Liên hệ
- Model: STACK100-(3s–15s)
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Nominal Capacity: 100Ah
- Nominal Voltage: 51.2V
- Nominal Energy: 15.36kWh – 76.8kWh (3–15 modules)
- Cycle Life: ≥8000 cycles
- Depth of Discharge (DOD): 95%
- Maximum Charge Current: 100A
- Maximum Discharge Current: 100A
- System Configuration: One cluster supports up to 15 modules and can be connected in parallel with up to 12 clusters
- Protection Rating: IP20
- Manufacturer: DYNESS
- Country of Origin: China
- Warranty: 10 years
- Documentation: CO, CQ, and VAT invoice available

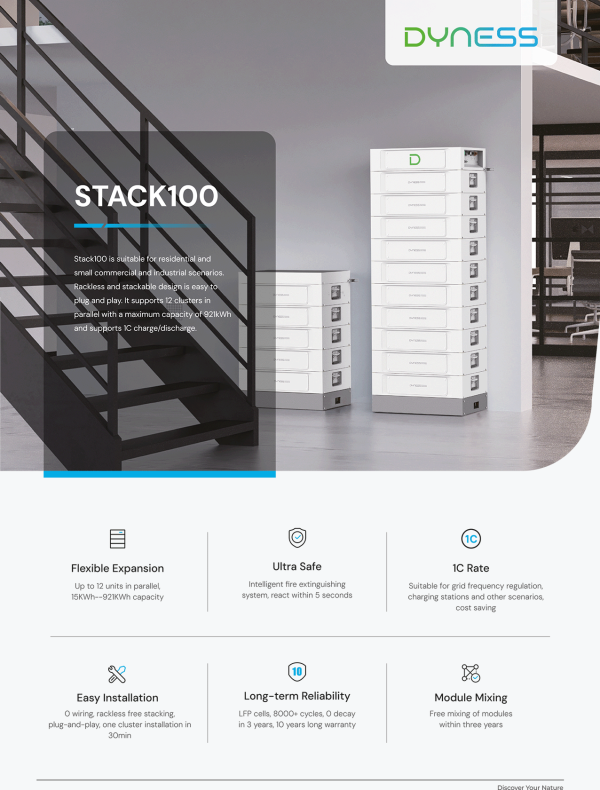

Download Datasheet: Dyness STACK100 datasheet-EN
Dyness STACK100 Energy Storage Battery: A Highly Flexible Tower-Style Storage Solution
In the clean energy trend of 2026, solar energy storage systems require high flexibility in capacity and exceptional durability. The Dyness STACK100 energy storage battery (Model: STACK100-3s-15s) was developed to address this demand with an intelligent stackable tower design, allowing investors to customize backup energy capacity from basic levels to small-scale industrial applications. Let Tran Le Electricity explore the capabilities of this powerful energy storage solution.
1. Intelligent Stackable Design and Flexible Energy Capacity
The Dyness STACK100 energy storage battery stands out with its vertical capacity expansion capability. A single cluster can be configured with 3 to 15 modules, corresponding to a wide energy range from 15.36 kWh to 76.8 kWh.
This design not only saves floor space but also provides a modern and aesthetic appearance for the installation area.
The most notable feature of the STACK100 series is its ability to connect up to 12 clusters in parallel. This means the total system capacity can reach nearly 1 MWh, making it an ideal energy storage solution for office buildings, hotels, and small manufacturing facilities.
2. 8000 Cycle Lifespan and 95% Depth of Discharge
Using advanced LiFePO4 (Lithium Iron Phosphate) battery technology, the Dyness STACK100 delivers a cell lifespan of ≥8000 charge/discharge cycles. This is among the highest cycle life ratings currently available on the market, ensuring stable system operation for more than 20 years.
In addition to its long lifespan, the system also supports a Depth of Discharge (DOD) of up to 95%. This capability allows users to utilize almost the entire stored clean energy capacity, maximizing economic efficiency and shortening the return-on-investment period for solar energy projects.
3. Detailed Technical Specifications of the Dyness STACK100 Energy Storage Battery
Below are the standard technical specifications of the STACK100 model available at Tran Le Electricity:
| Technical Specification | Details |
|---|---|
| Model | STACK100-(3s-15s) |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Energy per Cluster | 15.36 kWh – 76.8 kWh |
| Cycle Life | ≥8000 cycles |
| Depth of Discharge (DOD) | 95% |
| Scalability | Up to 12 clusters in parallel |
| Manufacturer Warranty | 10 years |
4. Why Choose Dyness STACK100 at Tran Le Electricity?
When purchasing a large-scale energy storage system from a Master Distributor, customers receive comprehensive support:
- 10-Year Long-Term Warranty: The highest commitment to product quality from Dyness, combined with professional technical service from Tran Le Electricity.
- Competitive Pricing: The most competitive pricing policy on the market for projects and authorized distributors.
- Complete Legal Documentation: 100% genuine products with full CO, CQ certificates and official VAT invoices.
- Professional Technical Consultation: The engineering team at Tran Le Electricity provides support for system design, load capacity calculations, and optimal communication configuration for large battery clusters.
Conclusion
With its flexible scalability, up to 8000 charge/discharge cycles, and modern aesthetic design, the Dyness STACK100 energy storage battery is a leading energy storage solution for projects requiring high stability and performance.
